ASME BPE Fittings
ASME BPE Fittings
High-quality ASME BPE Stainless Steel Fittings designed for hygienic and high-purity process piping in pharma…
MOQ: 50 Pieces
Price on Request
Best Seller

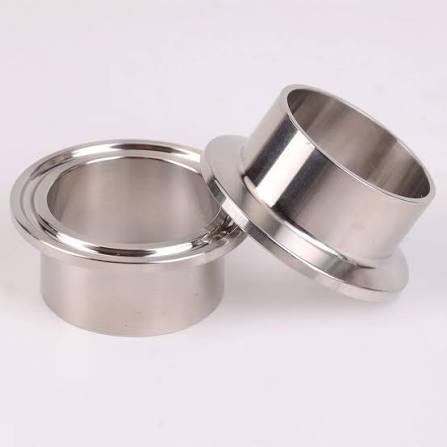

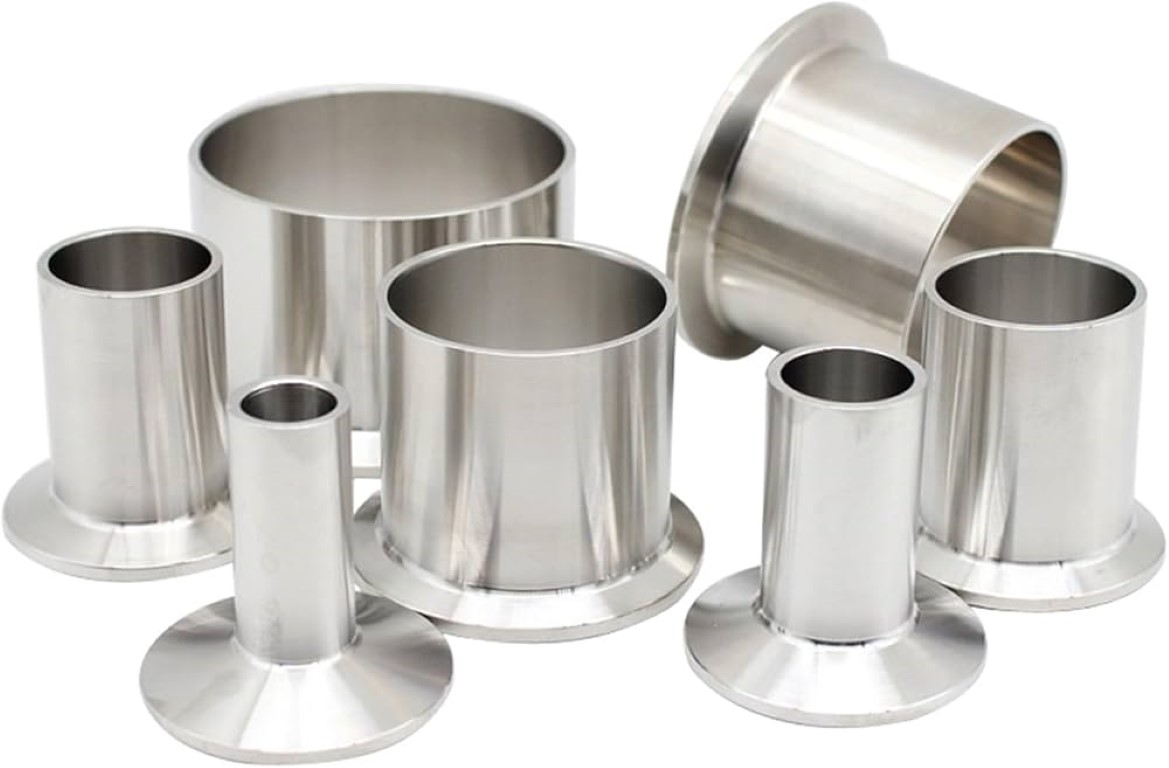

Stainless Steel Tri-Clamp Ferrule (TC Ferrule)
Ronak Overseas supplies stainless steel Tri-Clamp ferrules (TC ferrules) for hygienic piping systems used in dairy, pharmaceutical, food processing, biotechnology and other sanitary process industries. Available in SS 304 and SS 316/316L grades, subject to product specifications and availability.
| Material | SS 304, 304L, 316, 316L, 321, 310, MS, Duplex 2205, Super Duplex 2507, Monel 400, Inconel 600, Incon |
|---|---|
| Origin | INDIA |
| MOQ | 50 Pieces |
| Unit | Piece |
PricePrice on Request
Reply within 1 business dayStainless Steel Tri-Clamp Ferrules are hygienic pipe connection components designed to connect pipes, tubes, valves, tanks and process equipment using a compatible clamp and gasket. Their removable connection design supports convenient assembly, inspection, cleaning and maintenance in sanitary processing systems.
Ronak Overseas offers TC ferrules in various sizes, connection configurations and material grades according to customer requirements. These fittings are suitable for applications where reliable connections and appropriate hygienic design are important. Selection should be based on tube outside diameter, ferrule flange dimensions, material grade, surface finish and the applicable dimensional standard.
Our TC ferrule range serves dairy plants, food and beverage manufacturers, pharmaceutical facilities, biotechnology systems and hygienic process equipment manufacturers in India and export markets.
| Material | Stanless steel |
|---|---|
| Grade | 304 / 316L |
| Size | ½" – 12" |
| Finish | Internal / External EP |
| Origin | India |
- Available in SS 304 and SS 316/316L, subject to specification.
- Designed for compatible Tri-Clamp sanitary connections.
- Used with matching clamps and gaskets.
- Multiple sizes and configurations, subject to availability.
- Suitable for dairy, food, pharmaceutical and hygienic process applications.
- Supports convenient assembly, disassembly and maintenance.
- Can be specified according to required dimensions and applicable standards.
- Material and dimensional details can be confirmed for quotation and technical approval.
- Suitable for domestic supply and export enquiries.
- Technical drawings and inspection documentation can be discussed as per order requirements.
A Tri-Clamp ferrule is a stainless steel hygienic pipe fitting used to connect tubes, pipes, valves and process equipment through a compatible clamp and gasket.
TC ferrules are commonly available in SS 304 and SS 316/316L, depending on product availability and customer requirements.
TC ferrules are available in various sizes to suit different hygienic piping systems. Confirm the required tube outside diameter and ferrule flange dimensions before ordering.
They are commonly used in dairy plants, pharmaceutical manufacturing, food and beverage processing, biotechnology and hygienic process equipment.
SS 304 is widely used for general hygienic applications. SS 316L offers improved corrosion resistance in many demanding environments and is often preferred for pharmaceutical and chemical process applications.
A ferrule is connected to the piping or equipment using the appropriate connection method. Its flanged end is then joined to a compatible ferrule using a suitable gasket and Tri-Clamp.
Check the tube outside diameter, ferrule flange outside diameter, connection standard and required dimensions. Nominal pipe size and ferrule flange diameter are not necessarily the same.
Yes, appropriately specified sanitary ferrules can be used in pharmaceutical systems. Confirm the material grade, surface finish, dimensional standard, weld quality and documentation required for your application.
Custom dimensions may be available subject to manufacturing capability and order requirements. Provide a technical drawing, dimensions, material grade and required quantity for evaluation.
Surface finishes depend on the product and manufacturing specification. Specify the required finish or Ra value when requesting a quotation and confirm it before ordering.
Provide the size, tube outside diameter, material grade, ferrule type, surface finish, quantity and applicable standard. A drawing or sample reference can help verify dimensional compatibility.
Ronak Overseas serves Indian and international customers with stainless steel hygienic fittings. Contact the sales team to confirm product availability, specifications, quantities and export requirements.
