Orifice Flange
Standard Specification For orifice flange
- Dimensions :ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
- Size :1/2″ (15 NB) to 48″ (1200NB)
- Class :150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
- DIN :DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636,DIN 2637, DIN 2638, DIN 2673
- BS : BS 4504 , BS 4504, BS 1560, BS 10
- PN :PN6, PN10, PN16, PN25, PN40
- Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Packaging of Flanges
Packaging: Blind Flanges is sleeved into plastic bag individually, ten pieces wrapped with water-proof material, bundled with nylon rope. Clear labels are tagged on the outside of the package for easy identification of the quantity and product I.D. Great care is taken during operation and transportation.
Prevent any damage.
During transportation items are tagged, packed in plastic bags and closed in carton boxes or seaworthy wooden cases.
plywood case,pallet and according to customer’s requirment
Marking:Blind Flanges are marked with alloy name, outside diameter, wall thickness and heat number. Additional information like standard and alloy numbers can be added on request.

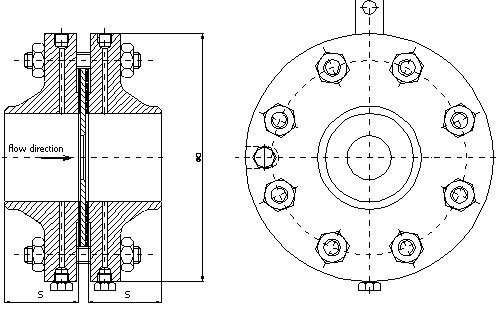

orifice flange -The function of the orifice flange is to measure the rate of the flow of the commodity through the piping system. Orifice flanges are easy to recognize because they have a hole drilled through the face of the flange perpendicular to the pipe. They also have an additional set of bolts called jack screws.
Material & Grades of Orifice Flange :
- Stainless Steel Orifice Flange : ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L Orifice Flange
- Duplex & Super Duplex Steel Orifice Flange : ASTM A182 / ASME SA182 F44, F 45, F51, F 53, F 55, F 60, F 61 Orifice Flange
- Carbon Steel Orifice Flange : ASTM A105 / ASME SA105 ASTM / ASME A 350 , ASTM A181 LF2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706 Orifice Flange
- Low Temperature Carbon Steel Orifice Flange: ASTM A350, LF2, LF3 Orifice Flange
- Alloy Steel Orifice Flange : ASTM A182 / ASME SA182 & A387 F1, F5, F9, F11, F12, F22, F91 Orifice Flange
- Copper Alloy Steel Orifice Flange : ASTM SB 61 , SB62 , SB151 , SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200
- Nickel Alloy Orifice Flange : ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020) Orifice Flange
Application of Orifice Flange
- ANSI B16.5 Class 150 Orifice Flange uses in Industrial Boilers Industry
- ASTM A182 Stainless Steel Orifice Flange uses in Power Plants Industry
- ASME B16.47 Series A and B Orifice Flange uses in Nuclear Plants Industry
- Stainless Steel Orifice Flange uses in Oil & Gas Industry
- Super Duplex Steel Orifice Flange uses in Refineries Industry
- Industrial Orifice Flange uses in Ship Building Industry
- Super Duplex Steel Orifice Flange Forged Flanges uses in Heat Exchanger Industry
- Carbon Steel Industrial Orifice Flange uses in Condensers Industry
- Alloy Steel Industrial Orifice Flange uses in Paper & Pulp Industry
- Duplex Steel Industrial Orifice Flange uses in Marine Applications
- Stainless Steel Industrial Orifice Flange uses in Nuclear Power Industry
- Industrial Orifice Flange / Fittings System uses in Fossil Fuel Power Plants Industry
