Threaded Flange
Standard Specification For threaded flanges
- Dimensions :ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
- Size :1/2″ (15 NB) to 48″ (1200NB)
- Class :150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
- DIN :DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636,DIN 2637, DIN 2638, DIN 2673
- BS : BS 4504 , BS 4504, BS 1560, BS 10
- PN :PN6, PN10, PN16, PN25, PN40
- Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Packaging of Threaded Flanges
Packaging: Threaded Flanges is sleeved into plastic bag individually, ten pieces wrapped with water-proof material, bundled with nylon rope. Clear labels are tagged on the outside of the package for easy identification of the quantity and product I.D. Great care is taken during operation and transportation.
Prevent any damage.
During transportation items are tagged, packed in plastic bags and closed in carton boxes or seaworthy wooden cases.
plywood case,pallet and according to customer’s requirment
Marking:Threaded Flanges are marked with alloy name, outside diameter, wall thickness and heat number. Additional information like standard and alloy numbers can be added on request.
threaded flanges are threaded in the bore which matches an external thread on the pipe. Threaded pipe flanges is just like to slip-on pipe flanges that are used with pipes that have external threads. It is used where small diameter and high pressure is required.
Material & Grades of Threaded Flanges :
- Stainless Steel Threaded Flanges : ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L Threaded Flanges
- Duplex & Super Duplex Steel Threaded Flanges : ASTM A182 / ASME SA182 F44, F 45, F51, F 53, F 55, F 60, F 61 Threaded Flanges
- Carbon Steel Threaded Flanges : ASTM A105 / ASME SA105 ASTM / ASME A 350 , ASTM A181 LF2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706 Threaded Flanges
- Low Temperature Carbon Steel Threaded Flange: ASTM A350, LF2, LF3 Threaded Flanges
- Alloy Steel Threaded Flanges : ASTM A182 / ASME SA182 & A387 F1, F5, F9, F11, F12, F22, F91 Threaded Flanges
- Copper Alloy Steel Threaded Flanges : ASTM SB 61 , SB62 , SB151 , SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200
- Nickel Alloy Threaded Flanges : ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020) Threaded Flanges
Application of Threaded Flanges
- ANSI B16.5 Class 150 Threaded Flanges uses in Industrial Boilers Industry
- ASTM A182 Stainless Steel Threaded Flanges uses in Power Plants Industry
- ASME B16.47 Series A and B Threaded Flanges uses in Nuclear Plants Industry
- Stainless Steel Threaded Flanges uses in Oil & Gas Industry
- Super Duplex Steel Threaded Flanges uses in Refineries Industry
- Industrial Threaded Flanges uses in Ship Building Industry
- Super Duplex Steel Threaded Flange Forged Flanges uses in Heat Exchanger Industry
- Carbon Steel Industrial Threaded Flanges uses in Condensers Industry
- Alloy Steel Industrial Threaded Flanges uses in Paper & Pulp Industry
- Duplex Steel Industrial Threaded Flanges uses in Marine Applications
- Stainless Steel Industrial Threaded Flanges uses in Nuclear Power Industry
- Industrial Threaded Flange / Fittings System uses in Fossil Fuel Power Plants Industry

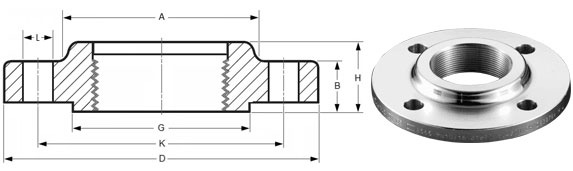

Dimensions of threaded flanges
NPS 1/2
| Class | 150 | 300 | 400 | 600 | 900 | 1500 | 2500 |
| Diameter – A | 30 | 38 | 38 | 38 | 38 | 38 | 43 |
| Diameter – D | 90 | 95 | 95 | 95 | 120 | 120 | 135 |
| Thickness – B | 9.6 | 12.7 | 14.3 | 14.3 | 22.3 | 22.3 | 30.2 |
| 11.2 | 14.3 | 20.7 | 20.7 | 28.7 | 28.7 | 36.6 | |
| Diameter – G | 35.1 | 35.1 | 35.1 | 35.1 | 35.1 | 35.1 | 35.1 |
| Diameter – K | 60.3 | 66.7 | 66.7 | 66.7 | 82.6 | 82.6 | 88.9 |
| Height – H | 14 | 21 | 22 | 22 | 32 | 32 | 40 |
| 15.6 | 22.6 | 28.4 | 28.4 | 38.4 | 38.4 | 46.4 | |
| Bolt Holes | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Diameter – L | 15.9 | 15.9 | 15.9 | 15.9 | 22.2 | 22.2 | 22.2 |
| Stud Bolts Diameter x Length | |||||||
| Diameter (in) | 1/2 | 1/2 | 1/2 | 1/2 | 3/4 | 3/4 | 3/4 |
| Length (mm) | 55 | 65 | 75 | 75 | 110 | 110 | 120 |
| NPS | 1/2 | 3/4 | 1 | 1¼ | 1½ | 2 | 2½ | NPS |
Dimensional Tolerances of Threaded Flanges ASME B16.5
| Outside Diameter ≤ 24 = 1.6 mm | > 24 = ± 3.2 mm | Inside Diameter Within Limits on Boring Gauge |
| Diameter of Contact Face 1.6 mm Raised Face = ± 0.8 mm 6.35 mm Raised Face, Tongue & Groove / Male-Female = ± 0.4 mm | Drilling Bolt Circle = 1.6 mm | Bolt Hole Spacing = ± 0.8 mm Eccentricity of Bolt Circle with Respect to Facing ≤ 2½ = 0.8 mm max. | ≥ 3 = 1.6 mm max. |
| Outside Diameter of Hub ≤ 12 = + 2.4 mm / – 1.6 mm | ≥ 14 = ± 3.2 mm | Diameter of Counterbore Same as forInside Diameter |
| Thickness ≤ 18 = + 3.2 mm / – 0 | ≥ 20 = + 4.8 mm / – 0 | Length thru Hub ≤ 18 = + 3.2 mm / – 0.8 mm | ≥ 20 = + 4.8 mm / – 1.6 mm |
INDUSTRIES WE CATERS INDUSTRIAL FORGE FITTING
- Ronak Overseas has many years of experiance of export and supply of ASME B16.11 Forged Fittings that is extensively used in the following industries:
- Refineries
- Gas Processing
- Off-Shore Oil Drilling Companies
- Petrochemicals
- Hydro-Carbon
- Fertilizers
- Paper & Pulp Companies
- Power Generation
- Specialty Chemicals
- Pharmaceuticals
- Drugs
- Steel
- Cement
- Water Pipe Line
- Pesticides
- General Piping
- Construction
- Engineering
- Nuclear
- Food Processing & Dairy
- boiler & heatexchangers
