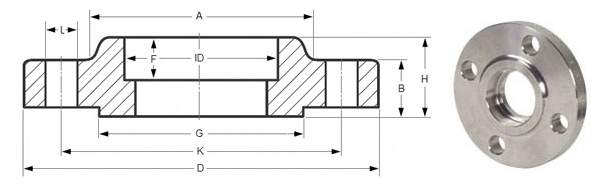

Socket Weld Flange

Similar products

Standard Specification For socket weld flange

Dimensions :ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Size :1/2″ (15 NB) to 48″ (1200NB)
Class :150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
DIN :DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636,DIN 2637, DIN 2638, DIN 2673
BS : BS 4504 , BS 4504, BS 1560, BS 10
PN :PN6, PN10, PN16, PN25, PN40
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

Packaging of Socket Weld Flange

Packaging: Socket Weld Flange is sleeved into plastic bag individually, ten pieces wrapped with water-proof material, bundled with nylon rope. Clear labels are tagged on the outside of the package for easy identification of the quantity and product I.D. Great care is taken during operation and transportation.

Prevent any damage.
During transportation items are tagged, packed in plastic bags and closed in carton boxes or seaworthy wooden cases.

plywood case,pallet and according to customer’s requirment

Marking:Socket Weld Flange are marked with alloy name, outside diameter, wall thickness and heat number. Additional information like standard and alloy numbers can be added on request.

socket weld flange are typically used on smaller sizes of high pressure pipes. These pipe flanges are attached by inserting the pipe into the socket end and applying fillet weld around the top. This allows for a smooth bore and better flow of the fluid or gas inside of the pipe.

Material & Grades of Socket Weld Flange :

Stainless Steel Socket Weld Flange : ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L Socket Weld Flange
Duplex & Super Duplex Steel Socket Weld Flange : ASTM A182 / ASME SA182 F44, F 45, F51, F 53, F 55, F 60, F 61 Socket Weld Flange
Carbon Steel Socket Weld Flange : ASTM A105 / ASME SA105 ASTM / ASME A 350 , ASTM A181 LF2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706 Socket Weld Flange
Low Temperature Carbon Steel Socket Weld Flange: ASTM A350, LF2, LF3 Socket Weld Flange
Alloy Steel Socket Weld Flange : ASTM A182 / ASME SA182 & A387 F1, F5, F9, F11, F12, F22, F91 Socket Weld Flange
Copper Alloy Steel Socket Weld Flange : ASTM SB 61 , SB62 , SB151 , SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200
Nickel Alloy Socket Weld Flange : ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020) Socket Weld Flange

Application of Socket Weld Flange

ANSI B16.5 Class 150 Socket Weld Flange uses in Industrial Boilers Industry
ASTM A182 Stainless Steel Socket Weld Flange uses in Power Plants Industry
ASME B16.47 Series A and B Socket Weld Flange uses in Nuclear Plants Industry
Stainless Steel Socket Weld Flange uses in Oil & Gas Industry
Super Duplex Steel Socket Weld Flange uses in Refineries Industry
Industrial Socket Weld Flange uses in Ship Building Industry
Super Duplex Steel Socket Weld Flange Forged Flange uses in Heat Exchanger Industry
Carbon Steel Industrial Socket Weld Flange uses in Condensers Industry
Alloy Steel Industrial Socket Weld Flange uses in Paper & Pulp Industry
Duplex Steel Industrial Socket Weld Flange uses in Marine Applications
Stainless Steel Industrial Socket Weld Flange uses in Nuclear Power Industry
Industrial Socket Weld Flange / Fittings System uses in Fossil Fuel Power Plants Industry
