Specifications of ASME B16.11 socketweld branch outlet
socketweld cross tee Stainless Steel ASME B16.11 socketweld branch outlet | Carbon Steel ASME B16.11 socketweld branch outlet | Nickel Alloys ASME B16.11 socketweld branch outlet
Size : 1/2″NB TO 4″NB IN
Class : 3000 LBS, 6000 LBS, 9000 LBS
Type : Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
Form : 45 Deg Elbow, 90 Deg Elbow, Forged Elbow, Threaded Elbow, Socket Weld Elbow.
Material and Grades:
Carbon Steel:
ASTM A234 Gr. WPB
ASTM A420 Gr. WPL6
ASTM A105
ASTM A350 Gr. LF2
Stainless Steel:
ASTM A403 WP316/316L
ASTM A403 WP304/304L
ASTM A182 F316L, 304L
socketweld lateral outlet They are used for lines conveying flammable, toxic or expensive material where no leakage can be permitted, and for steam 300 to 600 PSI.
Applications Of ASME B 16.11 socketweld branch outlet
- ASME B 16.11 socketweld branch outlet used in Chemical and petrochemical processing
- ASME B 16.11 socketweld branch outlet used in refineries
- ASME B 16.11 socketweld branch outlet used in electronics
- ASME B 16.11 socketweld branch outlet used in fertilizer
- ASME B 16.11 socketweld branch outlet used in power plant
- ASME B 16.11 socketweld branch outlet used in nuclear power
- ASME B 16.11 socketweld branch outlet used in oil and gas
- ASME B 16.11 socketweld branch outlet used in paper industries

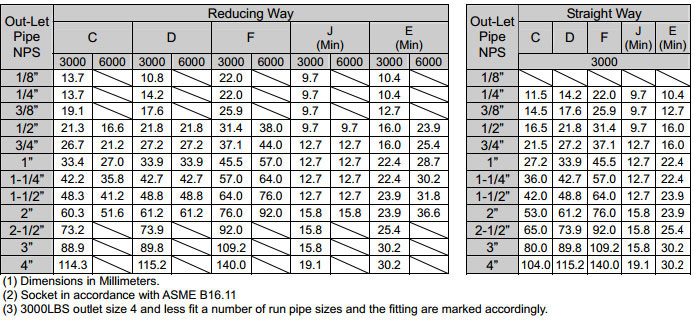

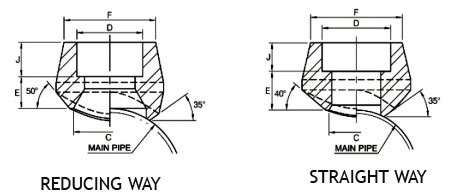

socketweld branch outlet dimensions of ASME B16.11
TYPES OF SOCKET WELD FITTINGS BY CLASS, SIZE AND WALL THICKNESS
INDUSTRIES WE CATERS INDUSTRIAL FORGE FITTING
- Ronak Overseas has many years of experiance of export and supply of ASME B16.11 Forged Fittings that is extensively used in the following industries:
- Refineries
- Gas Processing
- Off-Shore Oil Drilling Companies
- Petrochemicals
- Hydro-Carbon
- Fertilizers
- Paper & Pulp Companies
- Power Generation
- Specialty Chemicals
- Pharmaceuticals
- Drugs
- Steel
- Cement
- Water Pipe Line
- Pesticides
- General Piping
- Construction
- Engineering
- Nuclear
- Food Processing & Dairy
- boiler & heatexchangers
