Socketweld Union
- socketweld elbow 45
- socketweld elbow 90
- socketweld tee
- socketweld unequal tee
- socketweld cross tee
- socketweld cocentric reducer
- socketweld eccentric reducer
- socketweld full coupling
- socketweld half coupling
- socketweld branch outlet
- socketweld lateral outlet
- socketweld union
- socketweld end cap
- socketweld adapter
- socketweld nipple
Specifications of ASME B16.11 socketweld end cap
socketweld union Stainless Steel ASME B16.11 socketweld end cap | Carbon Steel ASME B16.11 socketweld union | Nickel Alloys ASME B16.11 socketweld union
Size : 1/2″NB TO 4″NB IN
Class : 3000 LBS, 6000 LBS, 9000 LBS
Type : Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
Form : 45 Deg Elbow, 90 Deg Elbow, Forged Elbow, Threaded Elbow, Socket Weld Elbow.
Material and Grades:
Carbon Steel:
ASTM A234 Gr. WPB
ASTM A420 Gr. WPL6
ASTM A105
ASTM A350 Gr. LF2
Stainless Steel:
ASTM A403 WP316/316L
ASTM A403 WP304/304L
ASTM A182 F316L, 304L

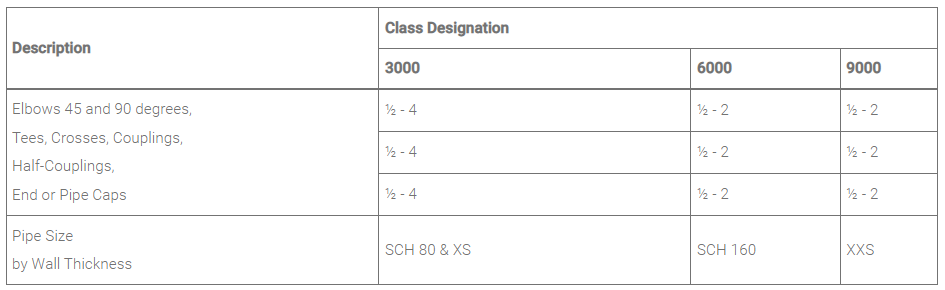

TYPES OF SOCKET WELD FITTINGS BY CLASS, SIZE AND WALL THICKNESS
Applications Of ASME B 16.11 socketweld union
- ASME B 16.11 socketweld union used in Chemical and petrochemical processing
- ASME B 16.11 socketweld union used in refineries
- ASME B 16.11 socketweld union used in electronics
- ASME B 16.11 socketweld union used in fertilizer
- ASME B 16.11 socketweld union used in power plant
- ASME B 16.11 socketweld union used in nuclear power
- ASME B 16.11 socketweld union used in oil and gas
- ASME B 16.11 socketweld union used in paper industries

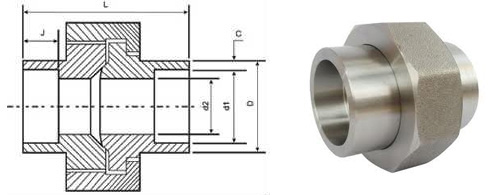

socketweld union dimensions of ASME B16.11
Nominal Diameter |
Outside Diameter |
Wall Thickness |
Socket Bore |
Water way Bore |
Depth of Socket |
Length Assem
Nominal |
|||
Dmin |
Cmin |
d1 |
d2 |
Jmin |
L |
||||
DN |
NPS |
Socket |
Threaded |
Socket |
Threaded |
Socket |
Socket & Threaded |
Socket |
Socket & Threaded |
6 |
1/8 |
21.8 |
14.7 |
3.2 |
2.5 |
10.65 |
6.43 |
10 |
41.4 |
8 |
1/4 |
21.8 |
19.0 |
3.3 |
3.1 |
14.10 |
9.45 |
10 |
41.4 |
10 |
3/8 |
25.9 |
22.9 |
3.5 |
3.2 |
17.55 |
13.51 |
10 |
46.0 |
15 |
1/2 |
31.2 |
27.7 |
4.1 |
3.8 |
21.70 |
17.07 |
10 |
49.0 |
20 |
3/4 |
37.1 |
33.5 |
4.3 |
4.0 |
27.05 |
21.39 |
13 |
56.9 |
25 |
1 |
45.5 |
41.4 |
5.0 |
4.6 |
33.80 |
27.74 |
13 |
62.0 |
32 |
11/4 |
54.9 |
50.5 |
5.3 |
4.9 |
42.55 |
35.36 |
13 |
71.1 |
40 |
11/2 |
61.5 |
57.2 |
5.6 |
5.1 |
48.65 |
41.20 |
13 |
76.5 |
50 |
2 |
75.2 |
70.1 |
6.1 |
5.6 |
61.10 |
52.12 |
16 |
86.1 |
65 |
21/2 |
91.7 |
85.3 |
7.7 |
7.1 |
73.80 |
64.31 |
16 |
102.4 |
80 |
3 |
109.2 |
102.4 |
8.4 |
7.7 |
89.80 |
77.27 |
16 |
109.0 |
Packaging of ASME B16.11 Socket Weld Union
Packaging: ASME B16.11 Socket Weld Union Flanges is sleeved into plastic bag individually, ten pieces wrapped with water-proof material, bundled with nylon rope. Clear labels are tagged on the outside of the package for easy identification of the quantity and product I.D. Great care is taken during operation and transportation.
Prevent any damage.
During transportation items are tagged, packed in plastic bags and closed in carton boxes or seaworthy wooden cases.
plywood case,pallet and according to customer’s requirment
Marking: ASME B16.9 Socket Weld Union Flanges are marked with alloy name, outside diameter, wall thickness and heat number. Additional information like standard and alloy numbers can be added on request.
