Socketweld Equal Tee
Specifications of ASME B16.11 socketweld tee
socketweld tee Stainless Steel ASME B16.11 Socket Weld Tee | Carbon Steel ASME B16.11 Socket Weld Tee | Nickel Alloys ASME B16.11 Socket Weld Tee
Size : 1/2″NB TO 4″NB IN
Class : 3000 LBS, 6000 LBS, 9000 LBS
Type : Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
Form : 45 Deg Elbow, 90 Deg Elbow, Forged Elbow, Threaded Elbow, Socket Weld Elbow.
Material and Grades:
Carbon Steel:
ASTM A234 Gr. WPB
ASTM A420 Gr. WPL6
ASTM A105
ASTM A350 Gr. LF2
Stainless Steel:
ASTM A403 WP316/316L
ASTM A403 WP304/304L
ASTM A182 F316L, 304L
socketweld tee is a pipe attachment detail in which a pipe is inserted into a recessed area of a Valve, fitting or flange. In contrast to buttweld fittings, Socket Weld fittings are mainly used for small pipe diameters (Small Bore Piping); generally for piping whose nominal diameter is NPS 2 or smaller.

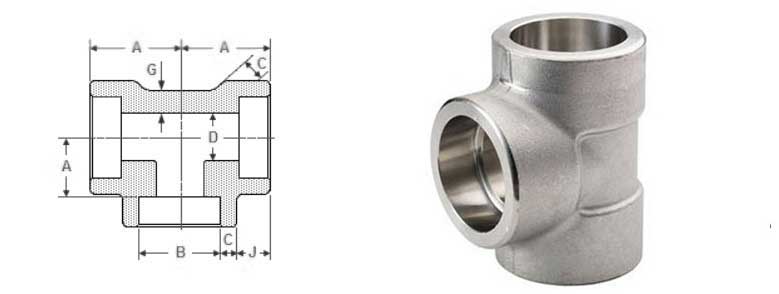

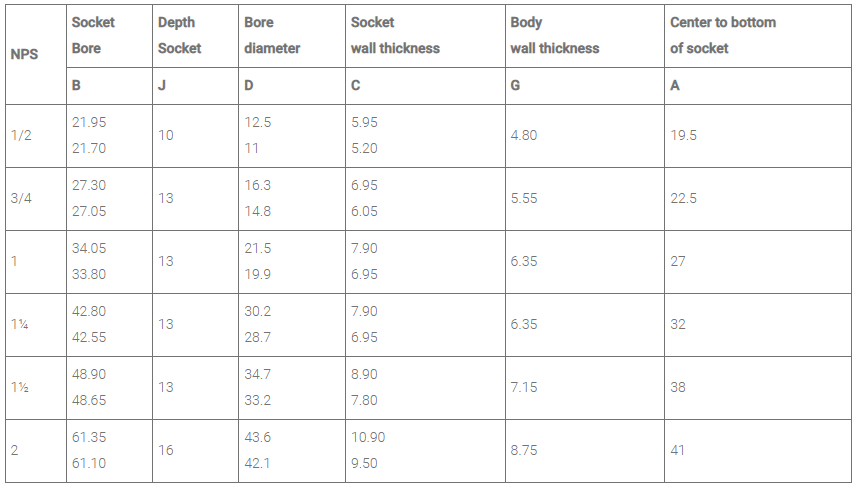

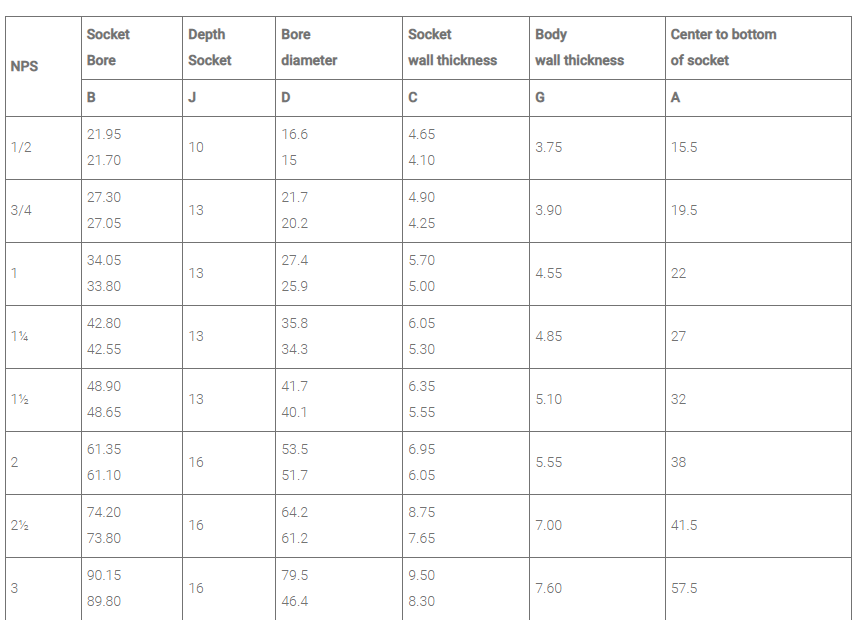

socketweld tee dimensions of ASME B16.11
INDUSTRIES WE CATERS INDUSTRIAL FORGE FITTING
- Ronak Overseas has many years of experiance of export and supply of ASME B16.11 Forged Fittings that is extensively used in the following industries:
- Refineries
- Gas Processing
- Off-Shore Oil Drilling Companies
- Petrochemicals
- Hydro-Carbon
- Fertilizers
- Paper & Pulp Companies
- Power Generation
- Specialty Chemicals
- Pharmaceuticals
- Drugs
- Steel
- Cement
- Water Pipe Line
- Pesticides
- General Piping
- Construction
- Engineering
- Nuclear
- Food Processing & Dairy
- boiler & heatexchangers
