Socketweld Half Coupling
- socketweld elbow 45
- socketweld elbow 90
- socketweld tee
- socketweld unequal tee
- socketweld cross tee
- socketweld cocentric reducer
- socketweld eccentric reducer
- socketweld full coupling
- socketweld half coupling
- socketweld branch outlet
- socketweld lateral outlet
- socketweld union
- socketweld end cap
- socketweld adapter
- socketweld nipple
Specifications of ASME B16.11 socketweld half coupling
socketweld half coupliing Stainless Steel ASME B16.11 Socket Weld half coupling | Carbon Steel ASME B16.11 Socket Weld half coupling | Nickel Alloys ASME B16.11 SocketWeld half coupling
Size : 1/2″NB TO 4″NB IN
Class : 3000 LBS, 6000 LBS, 9000 LBS
Type : Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
Form : 45 Deg Elbow, 90 Deg Elbow, Forged Elbow, Threaded Elbow, Socket Weld Elbow.
Material and Grades:
Carbon Steel:
ASTM A234 Gr. WPB
ASTM A420 Gr. WPL6
ASTM A105
ASTM A350 Gr. LF2
Stainless Steel:
ASTM A403 WP316/316L
ASTM A403 WP304/304L
ASTM A182 F316L, 304L


socketweld half coupling is used for small bore branching from a vessel or large bore pipe. It can be threaded or socket type. It has a socket or thread end on only one side. A socket weld half coupling can be directly welded to large bore pipe, to make a branch connection

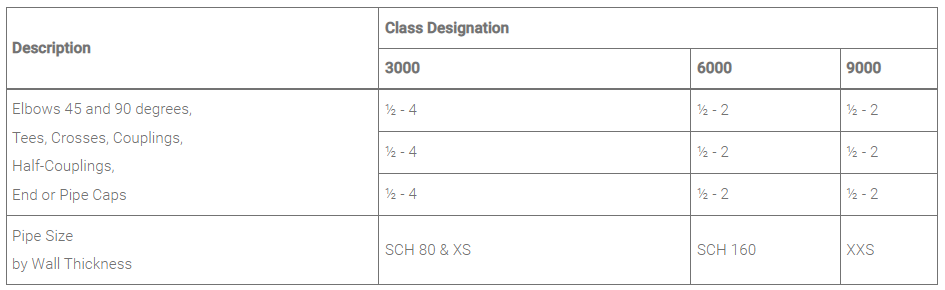

TYPES OF SOCKET WELD FITTINGS BY CLASS, SIZE AND WALL THICKNESS

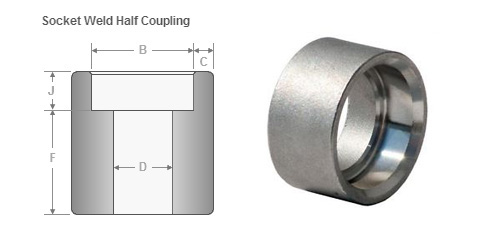

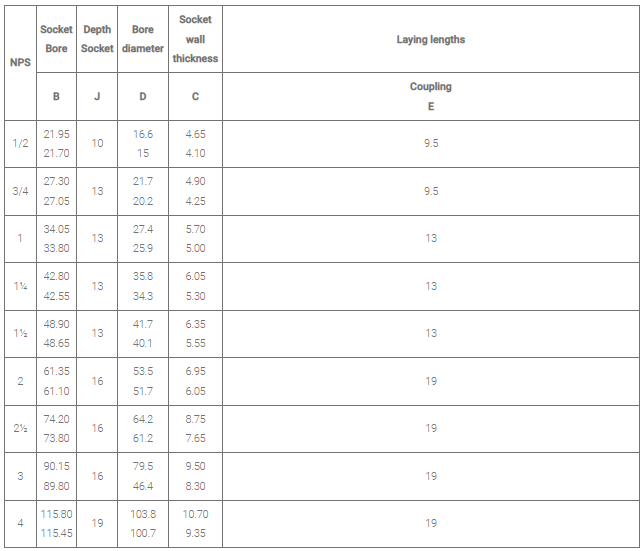

socketweld half coupling dimensions of ASME B16.11
INDUSTRIES WE CATERS INDUSTRIAL FORGE FITTING
- Ronak Overseas has many years of experiance of export and supply of ASME B16.11 Forged Fittings that is extensively used in the following industries:
- Refineries
- Gas Processing
- Off-Shore Oil Drilling Companies
- Petrochemicals
- Hydro-Carbon
- Fertilizers
- Paper & Pulp Companies
- Power Generation
- Specialty Chemicals
- Pharmaceuticals
- Drugs
- Steel
- Cement
- Water Pipe Line
- Pesticides
- General Piping
- Construction
- Engineering
- Nuclear
- Food Processing & Dairy
- boiler & heatexchangers
