Specifications of ASME B16.11 socketweld end cap
socketweld end cap Stainless Steel ASME B16.11 socketweld end cap | Carbon Steel ASME B16.11 socketweld end cap | Nickel Alloys ASME B16.11 socketweld end cap
Size : 1/2″NB TO 4″NB IN
Class : 3000 LBS, 6000 LBS, 9000 LBS
Type : Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
Form : 45 Deg Elbow, 90 Deg Elbow, Forged Elbow, Threaded Elbow, Socket Weld Elbow.
Material and Grades:
Carbon Steel:
ASTM A234 Gr. WPB
ASTM A420 Gr. WPL6
ASTM A105
ASTM A350 Gr. LF2
Stainless Steel:
ASTM A403 WP316/316L
ASTM A403 WP304/304L
ASTM A182 F316L, 304L

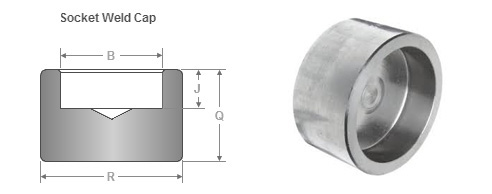

socketweld end cap fitting is a kind of pipe fitting which is inserted into a recessed valve, fitting or flange. A Stainless Steel Socket Weld Cap is a type of pipe fitting, usually liquid or gas tight which covers the end of a pipe to stop the flow. The functions of a cap are similar to a plug.

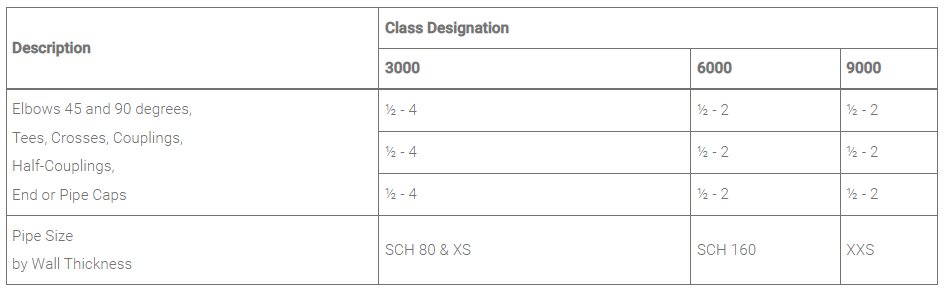

TYPES OF SOCKET WELD FITTINGS BY CLASS, SIZE AND WALL THICKNESS
Applications Of ASME B 16.11 sockeweld end cap
- ASME B 16.11 socketweld end cap used in Chemical and petrochemical processing
- ASME B 16.11 socketweld end cap used in refineries
- ASME B 16.11 socketweld end cap used in electronics
- ASME B 16.11 socketweld end cap used in fertilizer
- ASME B 16.11 socketweld end cap used in power plant
- ASME B 16.11 socketweld end cap used in nuclear power
- ASME B 16.11 socketweld end cap used in oil and gas
- ASME B 16.11 socketweld end cap used in paper industries

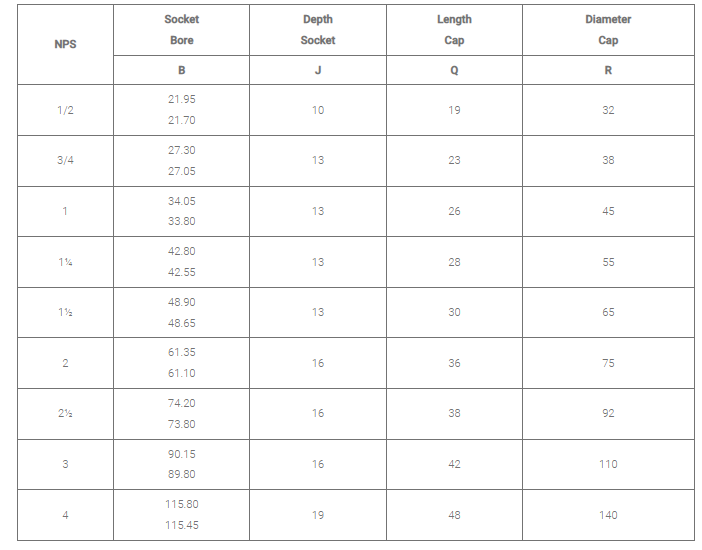

socketweld end cap dimensions of ASME B16.11

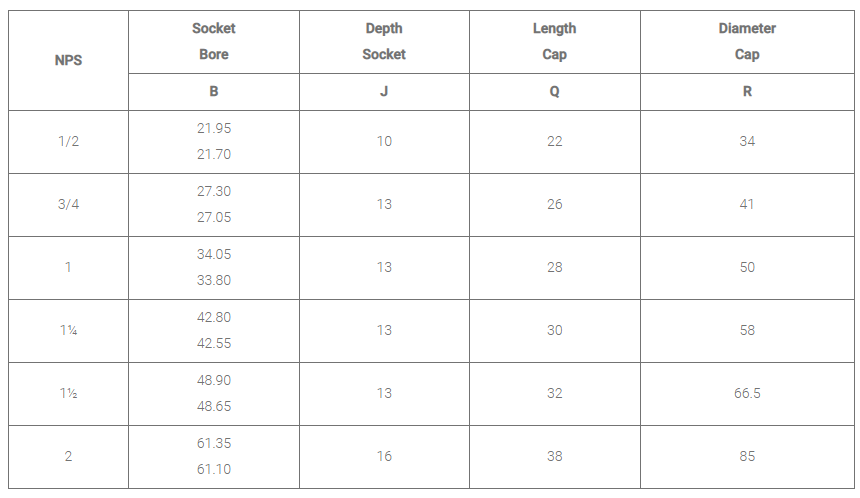

Dimensions socketweld end caps – NPS 1/2 to 2 – 6000 LBS – ASME B16.11
INDUSTRIES WE CATERS INDUSTRIAL FORGE FITTING
- Ronak Overseas has many years of experiance of export and supply of ASME B16.11 Forged Fittings that is extensively used in the following industries:
- Refineries
- Gas Processing
- Off-Shore Oil Drilling Companies
- Petrochemicals
- Hydro-Carbon
- Fertilizers
- Paper & Pulp Companies
- Power Generation
- Specialty Chemicals
- Pharmaceuticals
- Drugs
- Steel
- Cement
- Water Pipe Line
- Pesticides
- General Piping
- Construction
- Engineering
- Nuclear
- Food Processing & Dairy
- boiler & heatexchangers
